The Cable Marker is made of POM material with high-definition numbers and characters printed on its surface. It enables quick and accurate identification of wires and communication cables, greatly improving the efficiency of cable differentiation during wiring and maintenance.
The product is easy to install and operate. Simply remove the marker block and clip it onto the wire surface. It locks firmly in place without slipping after clipping. Adapted for cable coiling scenarios, the tube body can quickly return to a flat state after being pressed, allowing the mark to fit closely to the cable for a long time, effectively preventing displacement and falling off during use and ensuring the durability of the mark.
This product is available in S and N styles to meet the usage requirements of different wiring scenarios.

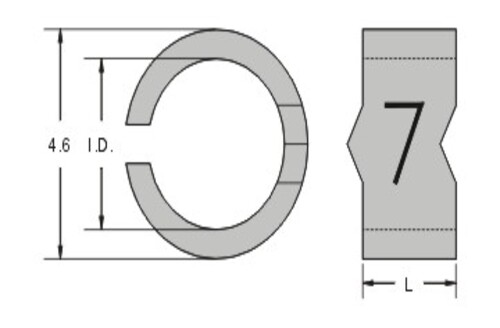

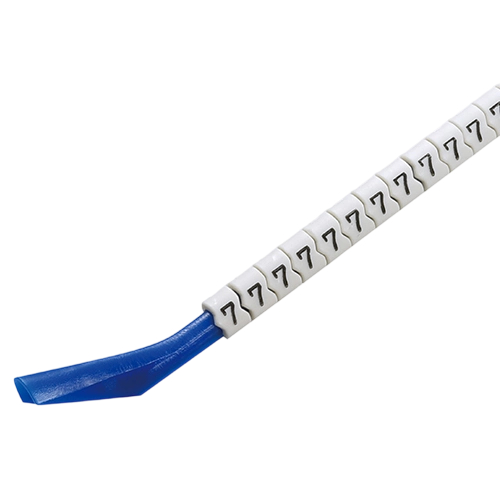

S type Wire Marker is shown in the figure below

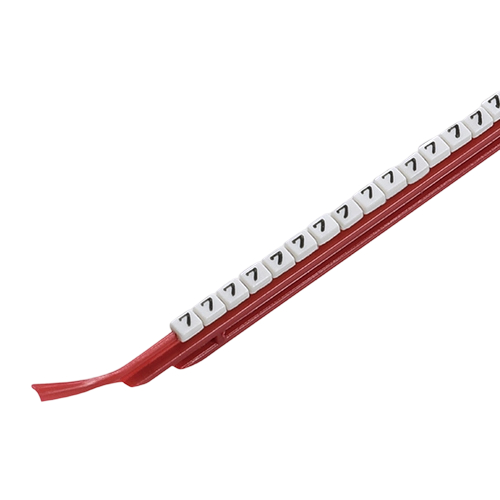

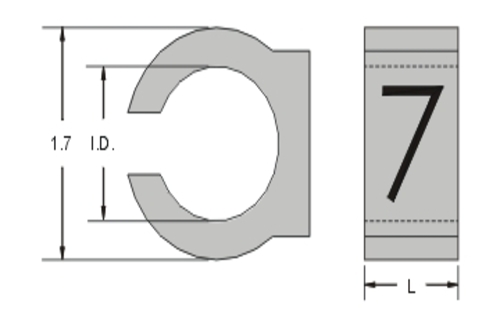

N type Wire Marker is shown in the figure below
Installation Method: Align the bell mouth end of the marker with the wire and push it gently with your fingers to slide it in and lock it firmly to the cable. No auxiliary tools are needed for the whole process, making the installation convenient and efficient.
Color Customization: Multicolor customization is supported. Only the black background is matched with white characters, and all other background colors are matched with black characters. The high-contrast color scheme makes the mark more eye-catching and clearly recognizable even from a distance.
Product Specifications:
| Part no. | General scope (mm) | specifications | L (mm) | Packing | Printing content | |
| inner diameter ￠1 |
Outer diameter ￠2 |
|||||
| S-1 | 0.9MM2: 0.8-1.1 | 0.9 | 2.5 | 3 | 30 ea/PCS | 0-9 A-Z |
| N-0 | 2.0MM2: 1.6-1.8 | 1.6 | 2.8 | 3 | 30 ea/PCS | |
| N-1 | 3.0MM2: 2.8-3.3 | 2.7 | 3.9 | 3 | 30 ea/PCS | |
| N-2 | 4.0MM2: 3.7-4.2 | 3.2 | 4.6 | 3.4 | 30 ea/PCS | |
